Getting Started

This page walks through the shortest path from install to a fitted model, while also explaining what the key arguments do and what is stored on the estimator after fitting.

Install

Pixi is the most complete setup for contributors:

pixi install
pixi run import-check

If you only want the package:

pip install -e .

If you want plotting, tests, comparison scripts, or docs tooling in a plain pip workflow, install the matching extras:

pip install -e ".[compare]"
pip install -e ".[test]"
pip install -e ".[docs]"

For documentation builds, the locked Pixi environment is the most reproducible option:

pixi run -e docs docs-build

For an existing Pixi project, you can link ffTRF directly from GitHub via Pixi's pypi-dependencies:

[pypi-dependencies]
fftrf = { git = "https://github.com/weigla/ffTRF" }

Then run pixi install. If you want to pin a specific revision, add rev = "<commit>" to the dependency entry.

First Model

import numpy as np

from fftrf import TRF, inverse_variance_weights

def simulate_trial(
    rng: np.random.Generator,
    *,
    n_samples: int,
    kernel: np.ndarray,
    noise_scale: float,
) -> tuple[np.ndarray, np.ndarray]:
    stimulus = rng.standard_normal((n_samples, 1))
    response = np.convolve(stimulus[:, 0], kernel, mode="full")[:n_samples]
    response += noise_scale * rng.standard_normal(n_samples)
    return stimulus, response[:, np.newaxis]


rng = np.random.default_rng(0)
fs = 512
kernel = np.zeros(60)
kernel[6] = 1.0
kernel[18] = -0.4
kernel[32] = 0.2

trials = [simulate_trial(rng, n_samples=4_096, kernel=kernel, noise_scale=0.05) for _ in range(6)]
stimulus = [trial_stimulus for trial_stimulus, _ in trials]
response = [trial_response for _, trial_response in trials]

model = TRF(direction=1)
cv_scores = model.train(
    stimulus=stimulus[:-1],
    response=response[:-1],
    fs=fs,
    tmin=0.0,
    tmax=kernel.shape[0] / fs,
    regularization=np.logspace(-6, 0, 7),
    segment_duration=1.0,
    overlap=0.5,
    window="hann",
    k="loo",
    trial_weights=inverse_variance_weights(response[:-1]),
)

prediction = model.predict(stimulus=stimulus[-1])
score = model.score(stimulus=stimulus[-1], response=response[-1])
fig, ax = model.plot(
    input_index=0,
    output_index=0,
    title="Recovered kernel from the held-out example",
)

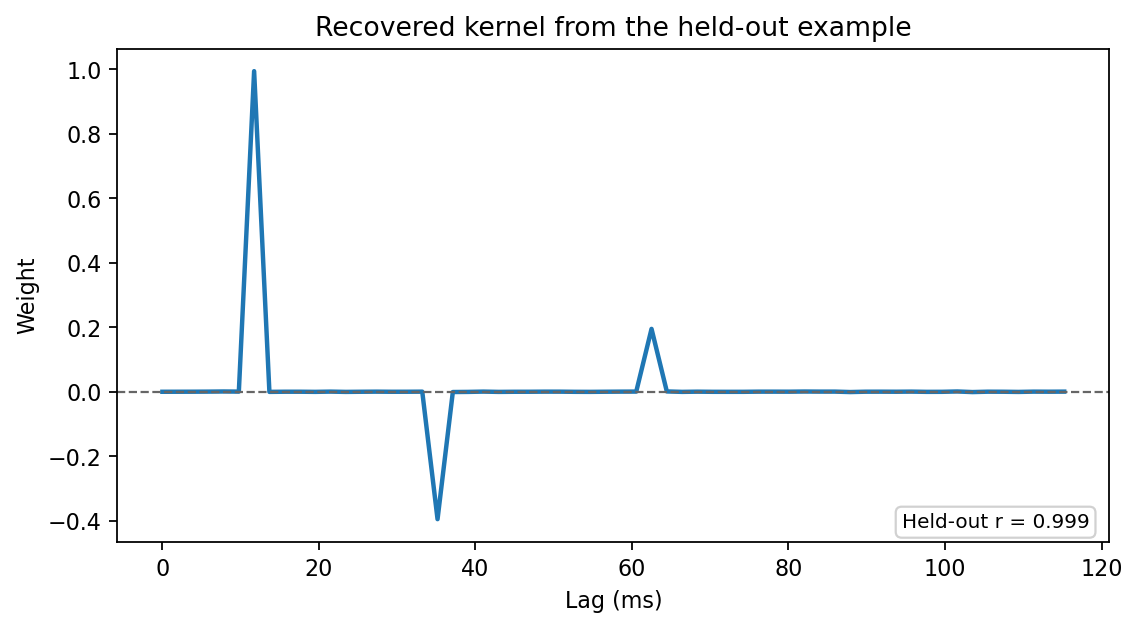

The plot below is generated from the exact seeded example above:

Getting started example output

What This Example Is Doing

  • stimulus and response are lists of arrays, so the fit runs in multi-trial mode.
  • stimulus[:-1] and response[:-1] are the training trials, while the last trial is held out for evaluation.
  • direction=1 means a forward model: stimulus features predict response channels.
  • tmin=0.0 and tmax=kernel.shape[0] / fs request a causal lag window that matches the simulated ground-truth kernel.
  • regularization=np.logspace(-6, 0, 7) asks the model to cross-validate over seven ridge values instead of fitting one fixed value.
  • segment_duration=1.0 sets the segment size used to estimate the cross-spectra.
  • overlap=0.5 reuses half of each segment in the next one, which can help stabilize estimates when segments are short.
  • window="hann" applies a Hann window before the FFT.
  • k="loo" means leave-one-out cross-validation over trials.
  • trial_weights=inverse_variance_weights(response[:-1]) downweights noisier training trials in the aggregate spectra.
  • prediction = model.predict(...) returns the held-out prediction, and score = model.score(...) evaluates that held-out trial with the estimator's configured metric.

What train(...) Returns

  • If regularization is a single scalar, train(...) returns None and fits directly.
  • If regularization contains multiple candidates, train(...) returns the cross-validation scores for those candidates.
  • Regardless of return value, the fitted state is stored on the estimator.

After training, the most important attributes are:

  • model.transfer_function: complex frequency-domain solution
  • model.frequencies: frequency axis in Hz
  • model.weights: lag-domain kernel
  • model.times: lag axis in seconds
  • model.regularization: chosen ridge value or banded tuple
  • model.regularization_candidates: all evaluated regularization candidates

What predict(...) Returns

  • If you pass only the predictor side, predict(...) returns predictions.
  • If you also pass the observed target side, it returns (predictions, score).
  • The default score is Pearson correlation, but you can choose a different metric when constructing the model.
  • score(...) always requires the observed target side and returns only the metric.

Input Conventions

  • Single-trial input can be a 1D or 2D NumPy array.
  • Multi-trial input should be a list of arrays.
  • Each trial must be shaped (n_samples, n_features) for the predictor side and (n_samples, n_outputs) for the target side.
  • A 1D vector is treated as a single feature or output channel.
  • All stimulus/response pairs within one fit must have matching sample counts per trial.
  • In a backward model (direction=-1), the predictor side is the response and the target side is the stimulus, but the same shape rules apply.

A Minimal Direct Fit

If you already know the ridge value you want, use a direct fit:

model = TRF(direction=1)
model.train(
    stimulus=stimulus,
    response=response,
    fs=fs,
    tmin=0.0,
    tmax=0.120,
    regularization=1e-3,
)

This avoids cross-validation and fits immediately with one regularization setting.

Common Next Actions After Training

  • model.plot(...): show one kernel
  • model.plot_grid(...): show all kernels in a feature-by-output grid
  • model.to_impulse_response(...): extract a different lag window without refitting
  • model.score(...): compute only the metric
  • model.transfer_function_components_at(...): inspect magnitude, phase, and group delay
  • model.cross_spectral_diagnostics(...): compare predicted and observed spectra
  • model.permutation_test(...): compare a held-out score against surrogate null scores
  • model.refit_permutation_test(...): rerun the training pipeline on surrogate-aligned training data for a stronger null
  • model.bootstrap_confidence_interval(...): estimate uncertainty over trials
  • model.save(...): persist the fitted model

Next Steps
