Examples

Use the rendered notebooks when learning a workflow. They split the analysis into short executable steps and explain which scientific question each option addresses. The plain Python scripts under examples/ remain useful for copying into pipelines and for CI smoke tests.

Related scripts are grouped into one notebook when the scientific decisions belong together. This keeps the notebook navigation extensive without turning it into a second API reference.

Choose a Notebook

Question	Notebook
How do I fit and evaluate my first forward model?	Getting Started

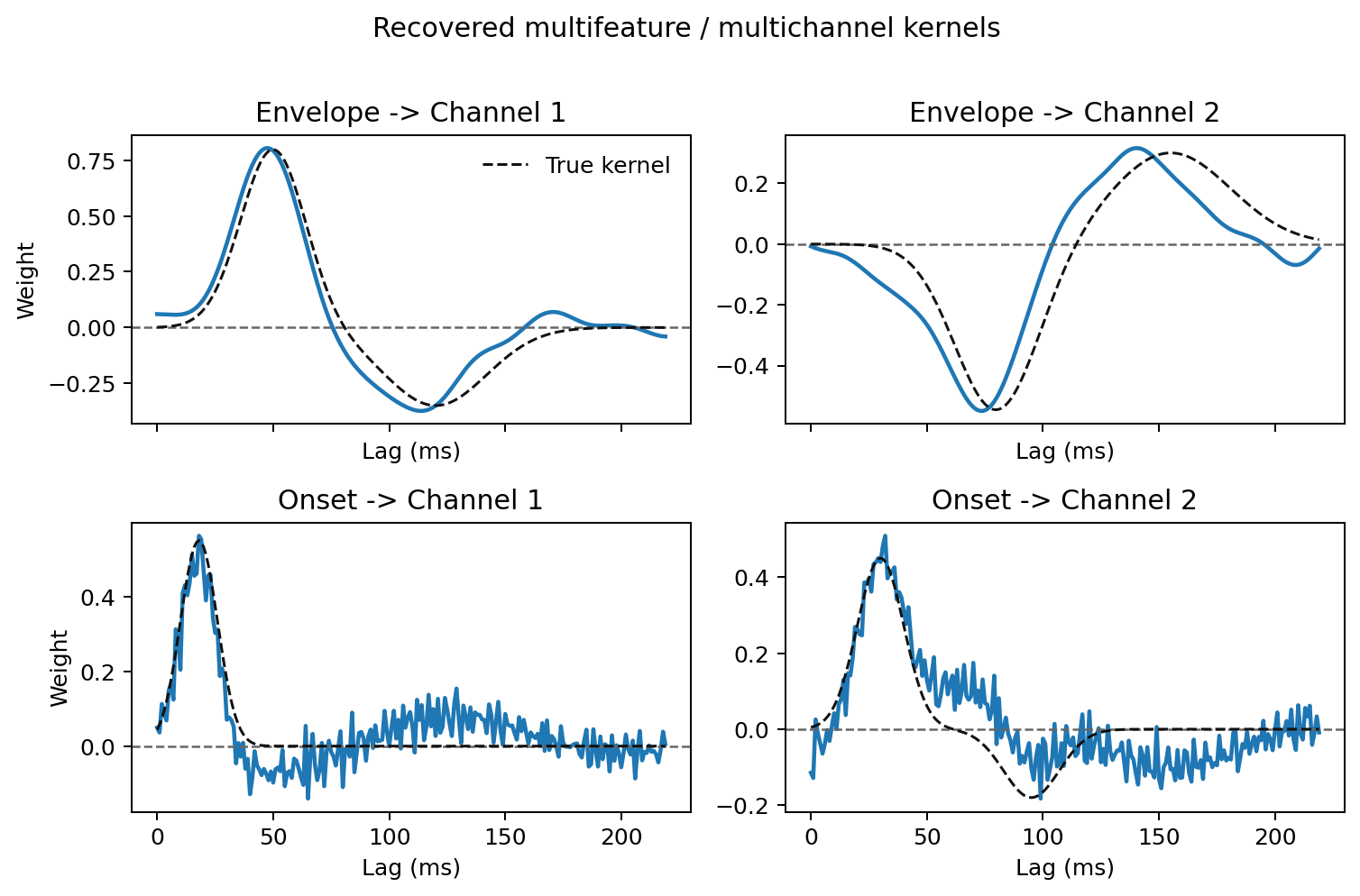

How do predictor features map onto several EEG channels?	Multiple Features and Channels
How do I reconstruct a stimulus from multichannel responses?	Backward Decoding
How should I select scalar or feature-banded ridge penalties?	Regularization

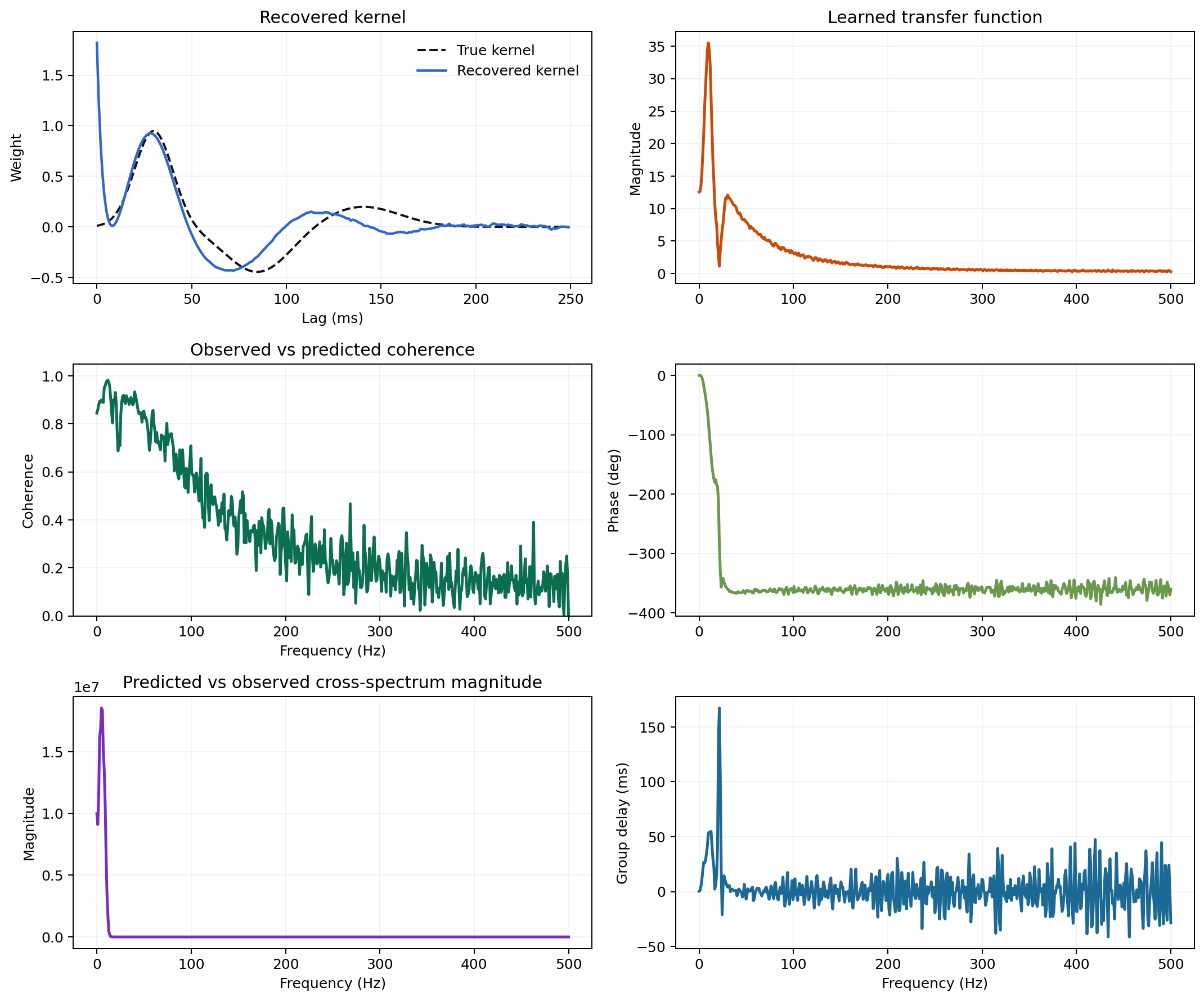

When is multitaper spectral estimation useful?	Multitaper Estimation

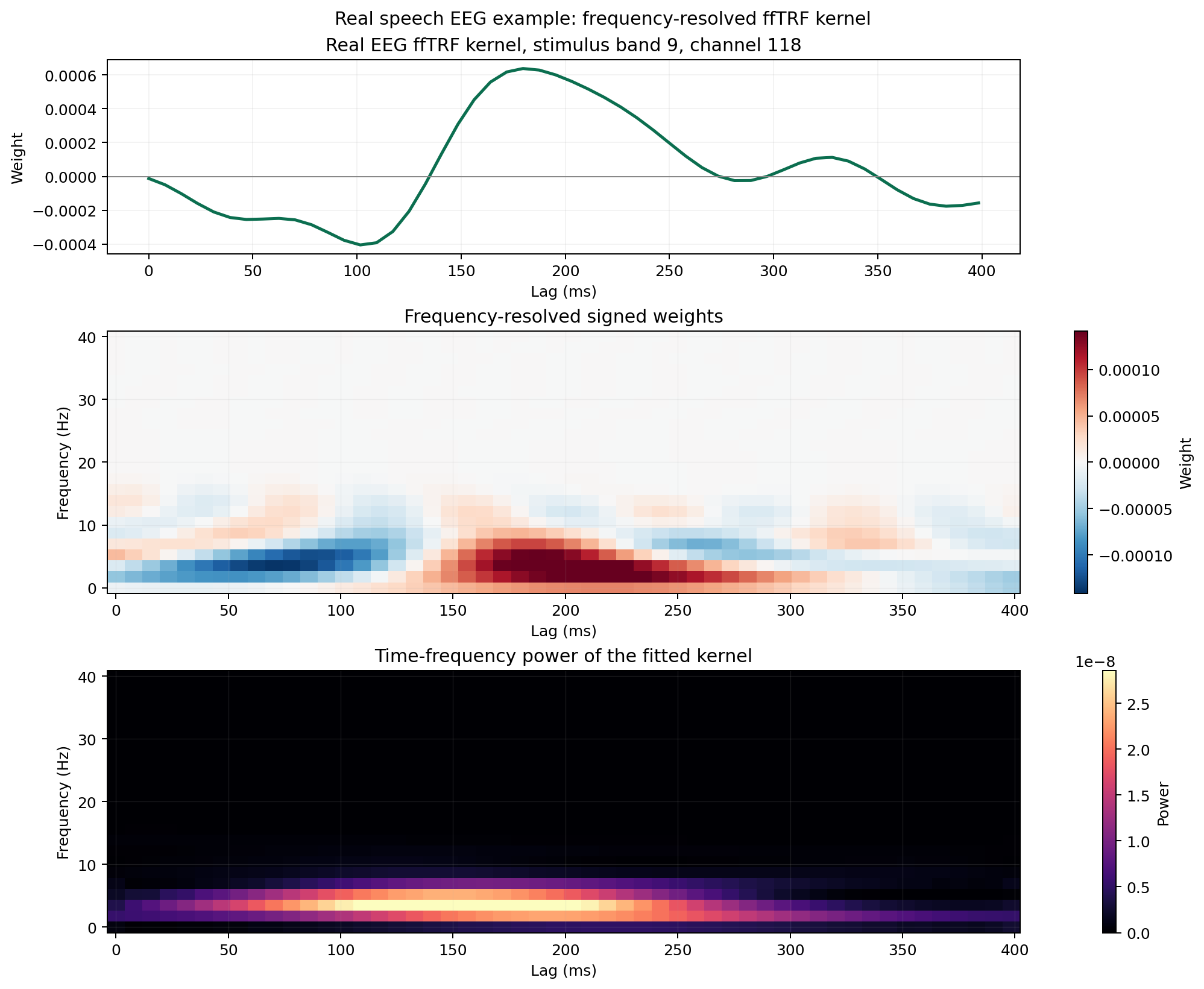

Which frequencies contribute to different parts of a kernel?	Frequency-Resolved Analysis
How do I inspect gain, phase, coherence, and cross-spectra?	Spectral Diagnostics
How do I quantify kernel uncertainty or test held-out tracking?	Uncertainty and Significance
When are trial weights scientifically defensible?	Trial Weighting
How do I save, restore, and export a fitted kernel?	Persistence

For a typical neuroscience analysis, begin with Getting Started. Continue only to the notebook connected to a prespecified analysis question.

Runnable Script Counterparts

Goal	Scripts
Basic forward workflows	example_single_trial_single_channel.py, example_multi_trial_single_channel.py
Multivariate and backward models	example_multifeature_multichannel.py, example_backward_decoding.py
Regularization and spectral estimation	example_banded_regularization.py, example_multitaper_estimator.py
Interpretation and diagnostics	example_frequency_resolved_weights.py
Inference and data quality	example_bootstrap_confidence_interval.py, example_permutation_significance.py, example_trial_weighting.py
Persistence	example_save_and_load.py

Focused Real EEG Workflows

These scripts use the public mTRF speech-EEG sample. The first run downloads the dataset; neither focused example requires the mtrf Python package.

Script	Use case

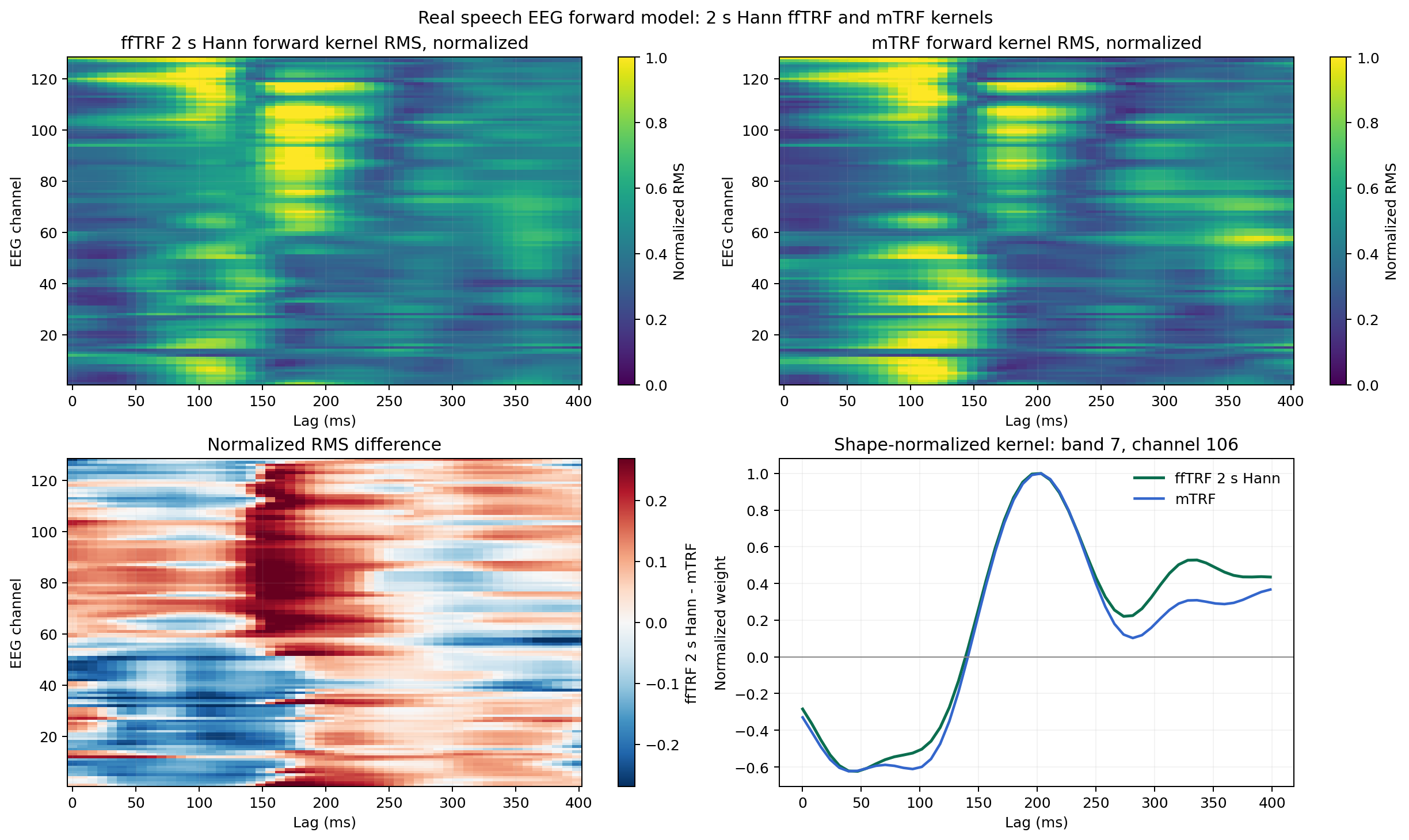

example_real_eeg_forward.py	Short 16 speech bands -> 128 EEG channels workflow with 7 training/CV and 3 held-out segments

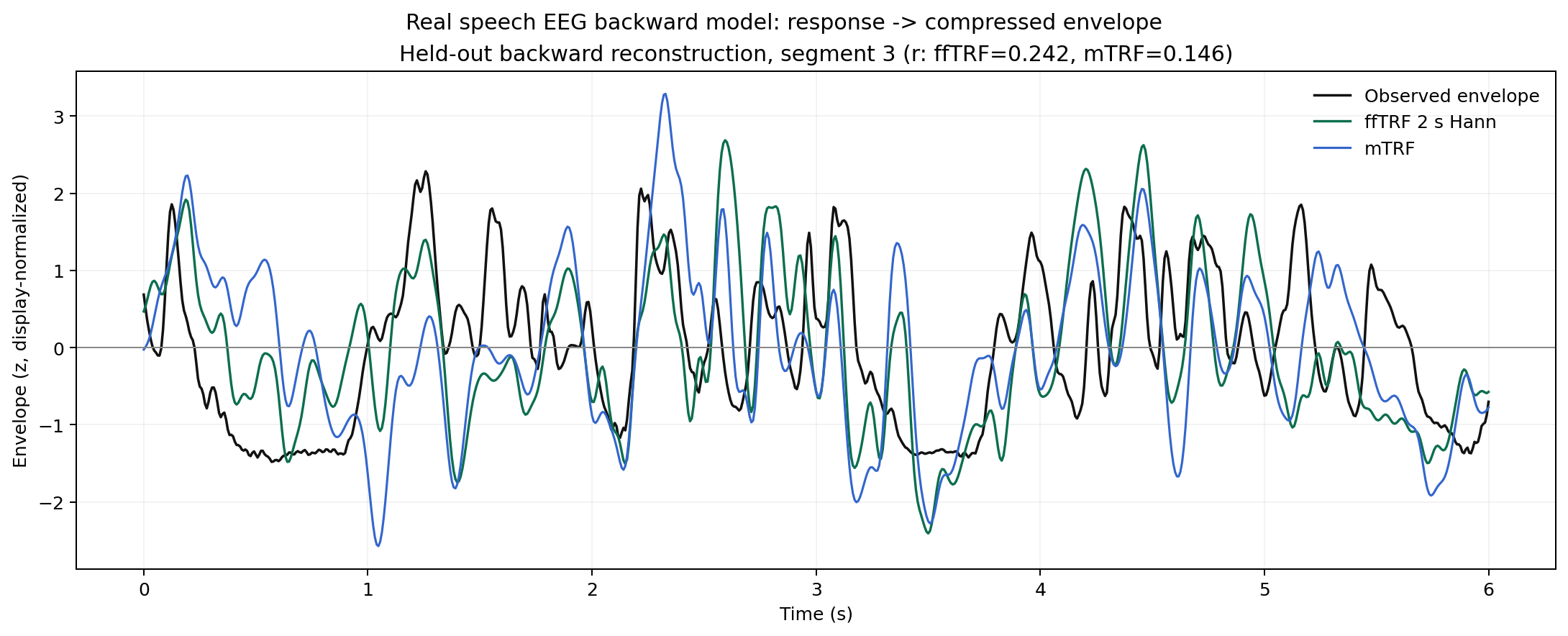

example_real_eeg_backward.py	Short 128 EEG channels -> 1 envelope decoder with the same held-out split and explicit physical lag reporting

Both scripts report aggregate held-out results. The forward figure shows a prespecified input/channel pair and all channel scores; the backward figure shows the first held-out segment rather than selecting the best test segment. To reproduce the public dataset's tutorial convention, the loader standardizes each 12-second segment independently. Treat that as a documented choice for this example, not a universal preprocessing template.

Sample-Data Provenance and Integrity

The loader fetches tests/data/speech_data.npy from mTRFpy commit 9b89449c… and checks SHA-256. It verifies cached files on every use and writes new downloads to a temporary file before atomically installing a digest-matching copy.

If a cache integrity check fails, remove only artifacts/mtrf_data/speech_data.npy and rerun the example.

Comparing ffTRF With mTRF

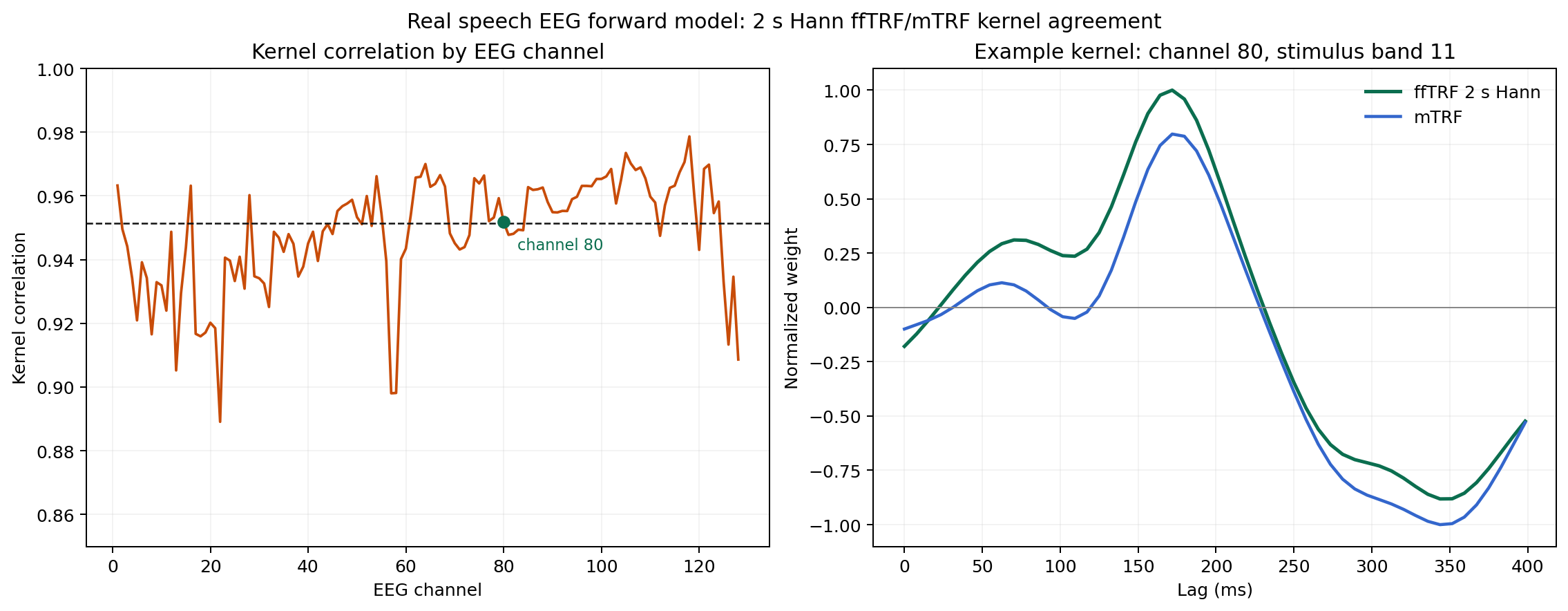

Toolbox agreement, real-EEG validation figures, and benchmark interpretation have a dedicated page: Comparison with mTRF. That page distinguishes matched solver comparisons from ffTRF workflows that use a different spectral estimator.

Validation and Benchmark Programs

The following are development and validation programs, not first tutorials:

Script	Use case
compare_real_eeg_with_mtrf.py	Comprehensive forward/backward ffTRF versus mTRF comparison, isolated timing, memory measurement, and plotting
benchmark_real_eeg.py	Reproduce matched and practical real-EEG benchmarks with repeated fit time, total and additional peak RSS, held-out prediction checks, and raw JSON
generate_documentation_figures.py	Regenerate the real EEG documentation gallery
compare_with_mtrf.py	Small synthetic solver comparison
benchmark_runtime.py	Synthetic crossover scenarios with repeated runtime, memory ratios, held-out prediction, and kernel-agreement checks

These scripts expose more options and infrastructure because their purpose is reproducibility and implementation validation.

Running Examples

Core and inference examples:

python examples/example_multi_trial_single_channel.py
python examples/example_backward_decoding.py
python examples/example_bootstrap_confidence_interval.py
python examples/example_permutation_significance.py

Focused real EEG examples after a standard pip install fftrf:

python examples/example_real_eeg_forward.py
python examples/example_real_eeg_backward.py

Advanced comparison programs:

pixi run -e compare python examples/compare_real_eeg_with_mtrf.py
pixi run -e compare benchmark-demo
pixi run -e compare real-eeg-benchmark
pixi run -e compare python examples/generate_documentation_figures.py

The benchmark tasks limit each isolated worker to one native BLAS/OpenMP thread, preserve every measured run in JSON, and update generated summary blocks in the main README. Runtime ratios are hardware-dependent; regenerate both reports from a clean revision for release-facing claims.

Reading Results Carefully

When working through the scripts, distinguish:

• in-sample reconstruction from held-out generalization
• CV model-selection scores from the final untouched test score
• pointwise bootstrap variability from simultaneous inference
• one prespecified channel from a channel selected after inspecting results
• user examples from benchmark and validation infrastructure
